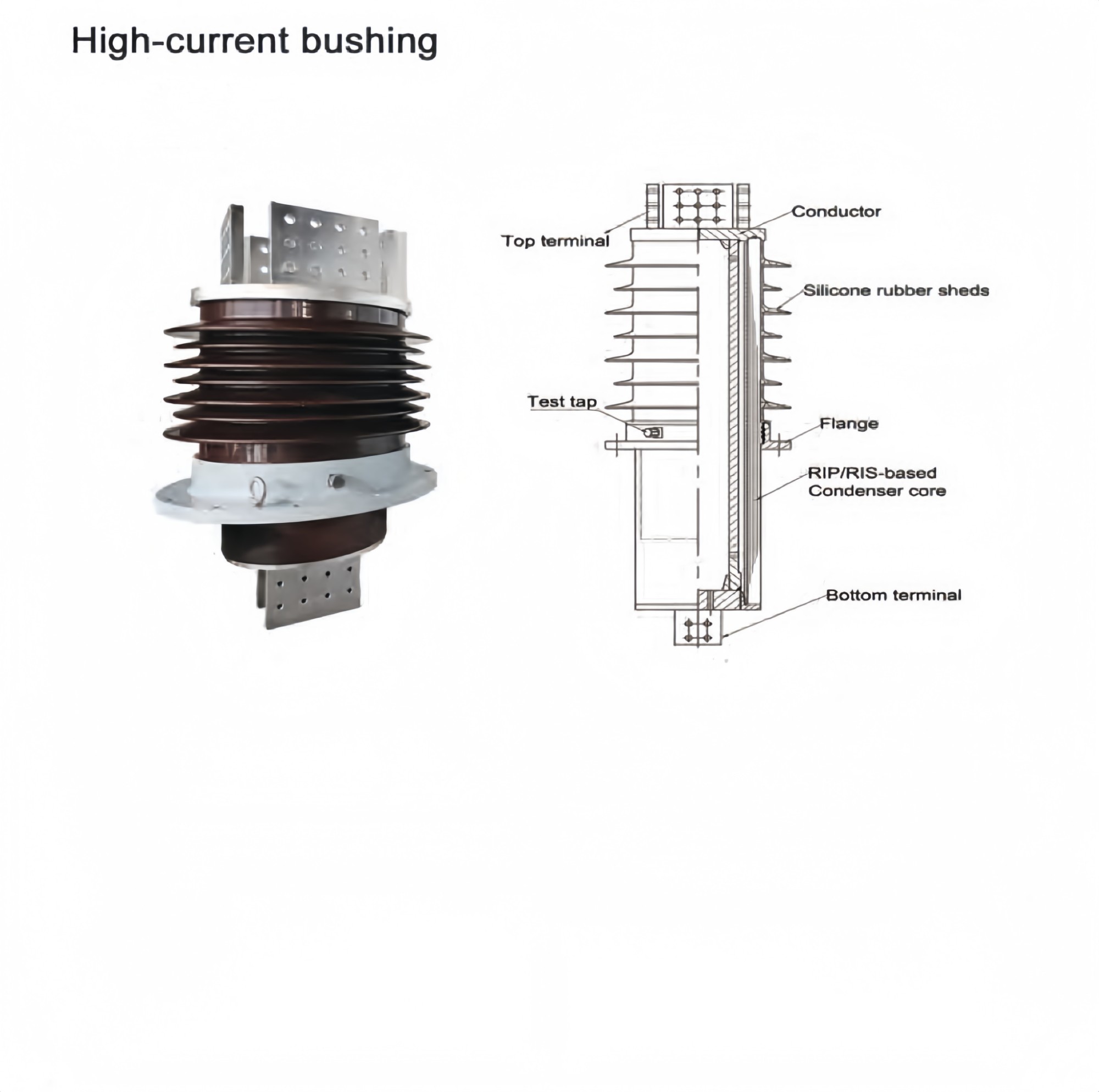

High-current bushing

Short Description:

From 5000A to 35,000A. Normally for connecting the oil-filled power transformer to a generator bus.

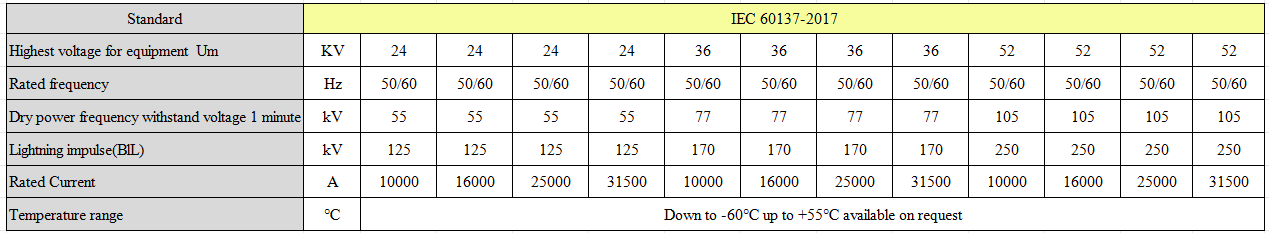

• Highest voltage for equipment Um: kV 24 24 24 24 36 36 36 36 52 52 52 52
• Rated frequency: Hz 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60
• Dry power frequency withstand voltage 1 minute: kV 55 55 55 55 77 77 77 77 105 105 105 105
