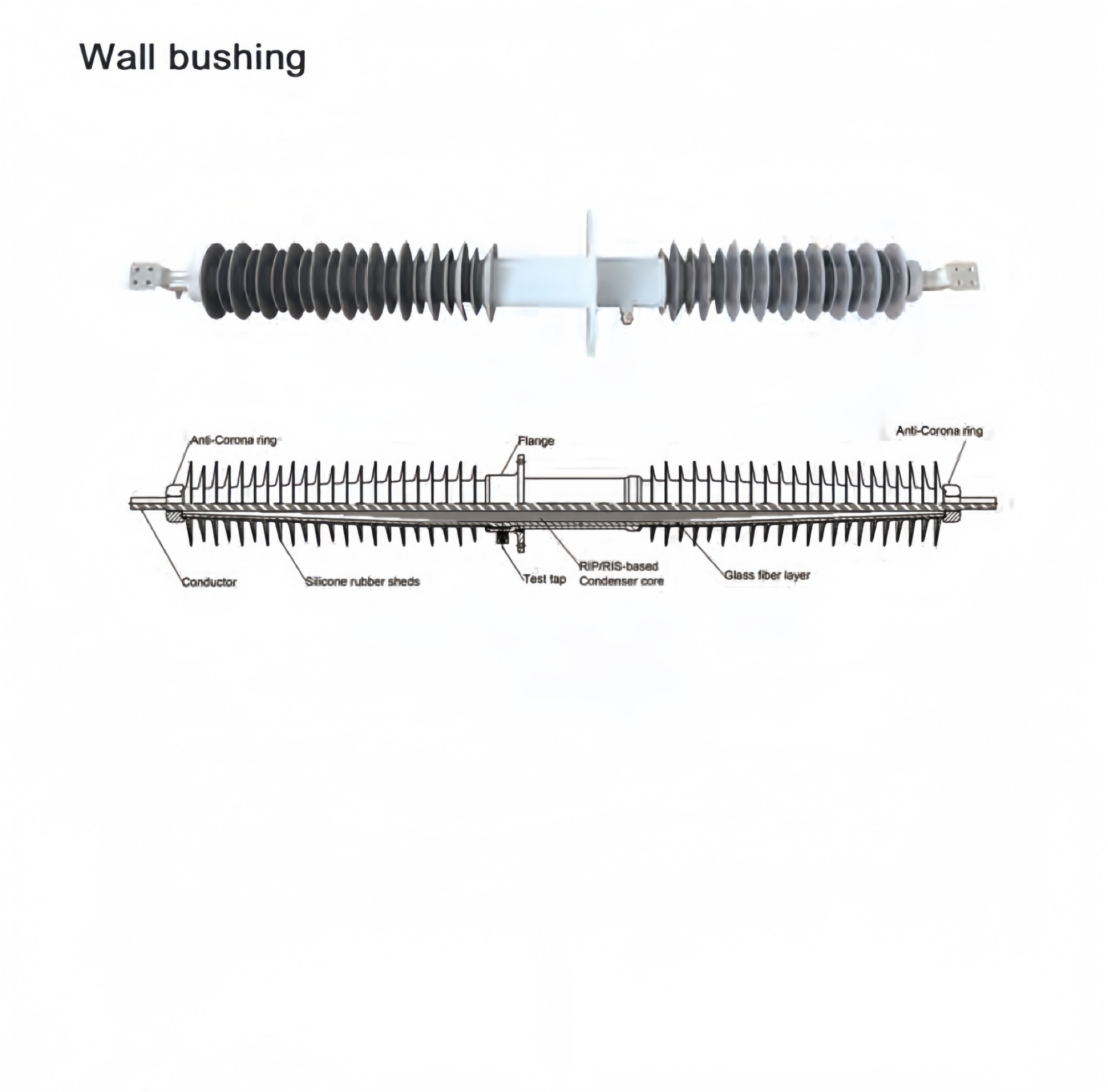

wall bushing

Short Description:

it's for through the wall and other types through such as the roof.RIP 363kV wall bushings

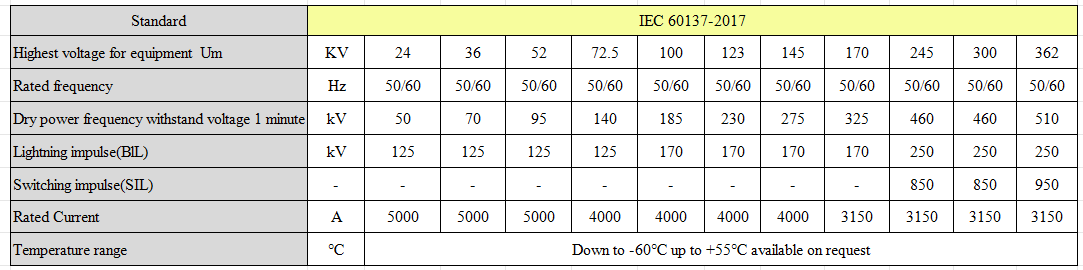

• Highest voltage for equipment Um: kV 24 36 52 72.5 100 123 145 170 245 300 362
• Rated frequency: Hz 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60
• Dry power frequency withstand voltage 1 minute: kV50 70 95 140 185 230 275 325 460 460 510
