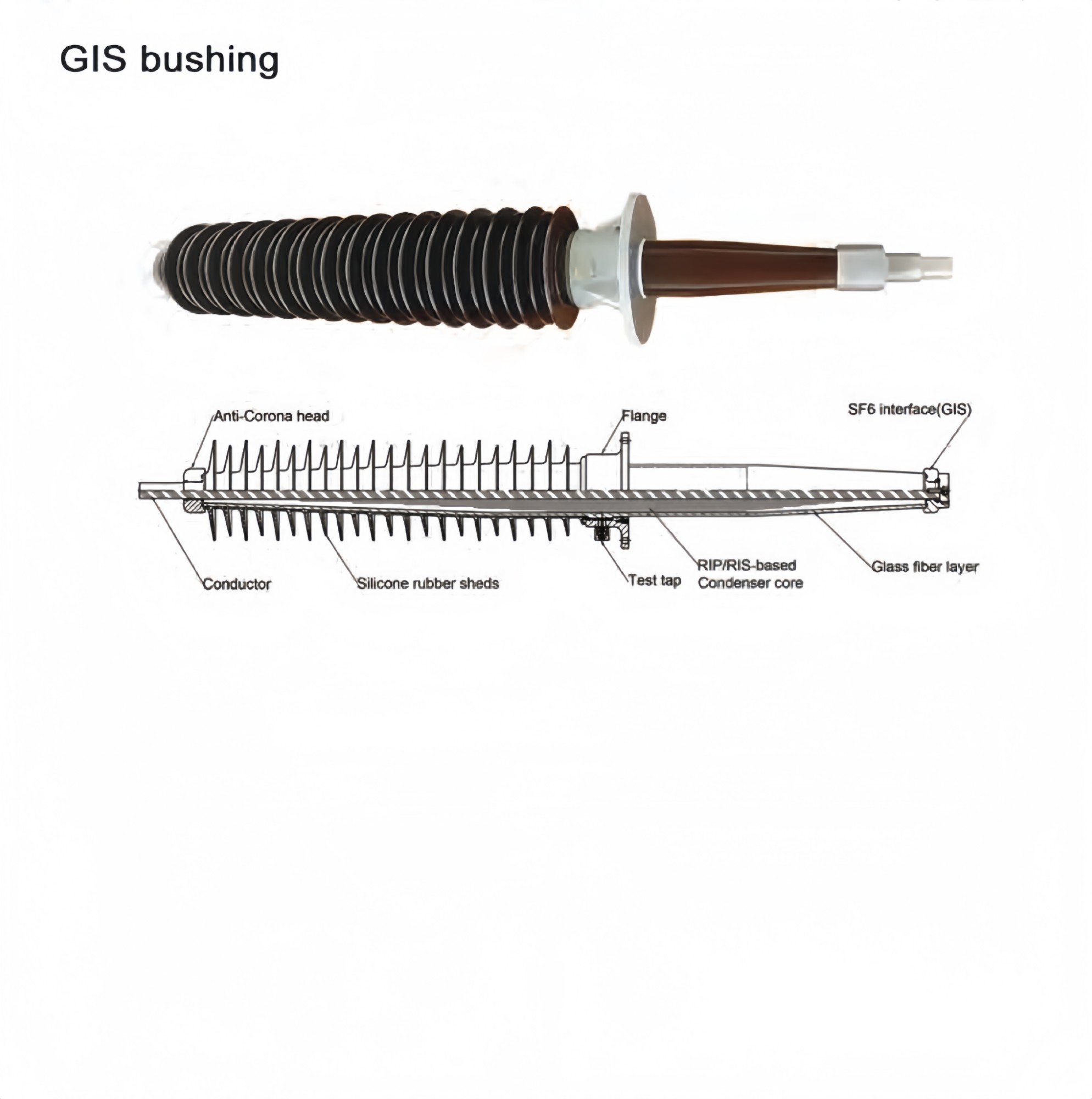

GIS bushing

Short Description:

It's for gas-insulated and air-insulated switchgear.

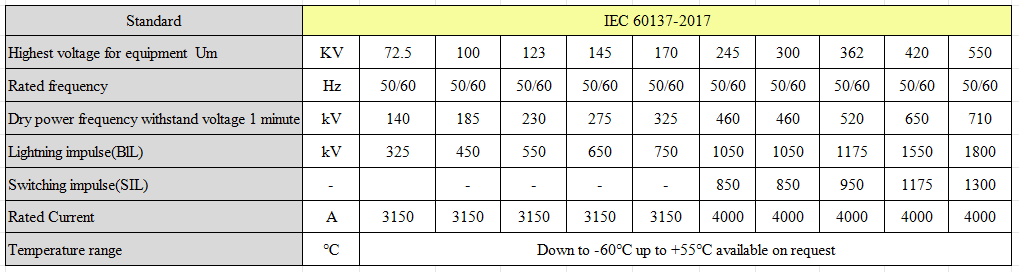

• Highest voltage for equipment Um: kV 72.5 100 123 145 170 245 300 362 420 550
• Rated frequency: Hz 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60
• Dry power frequency withstand voltage 1 minute: kV 140 185 230 275 325 460 460 520 650 710
